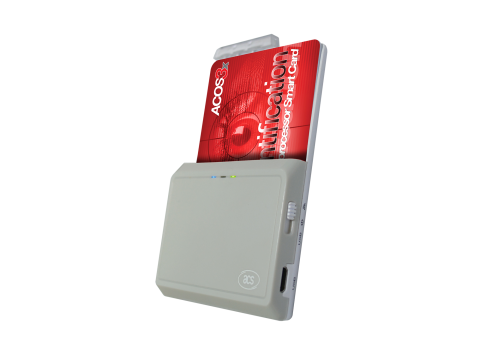

ACR3901U-S1

Physical Characteristics

Dimensions (mm)

12*60*94

Weight (g)

30.8

Power

USB Powered

Yes (PC-Linked Mode)

Battery Powered

Yes

Host Interface

3.5 mm Audio Jack

-

USB (Full Speed)

Micro-USB

Bluetooth 4.0

Yes

Magnetic Card Interface

ISO 7810

-

ISO 7811

-

HI-Coercivity Magnetic Card

-

Lo-Coercivity Magnetic Card

-

JIS1

-

JIS2

-

Contact Smart Card Interface

ISO 7816 (class A, B and C)

Yes

MCU cards, T=0 and T=1

Yes

Memory Card

Yes

Smart Card Read/Write Speed (kbps)

up to 600

Card Form

Full-Sized

Contactless Smart Card Interface

ISO 14443 Type A and B

-

ISO/IEC 18092 (NFC)

-

Mifare

-

Felica

-

Smart Card Read/Write Speed (kbps)

-

Reading Distance (mm)

-

Built-In Peripherals

LED

3

Encryption Algorithm

AES - 128

Yes

Key Management

DUKPT

-

Certifications / Compliance

PC/SD

Yes

CCID

Yes

WHQL

Yes

EMV level 1 (Contact)

Yes

FIPS 201

Yes

CE, FCC

Yes

VCCI

Yes

RoHS 2

Yes

REACH

Yes

Bluetooth Smart

Yes

Supported OS Platforms

Windows

Yes

Mac OS X

Yes

Linux

Yes

Android

Yes

iOS

Yes
