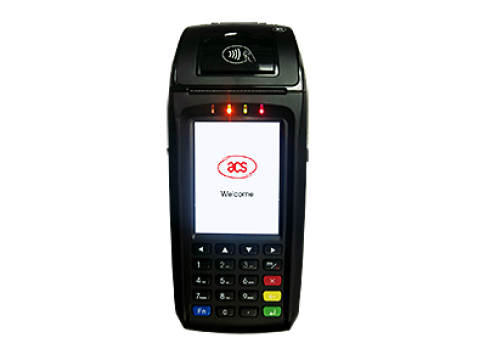

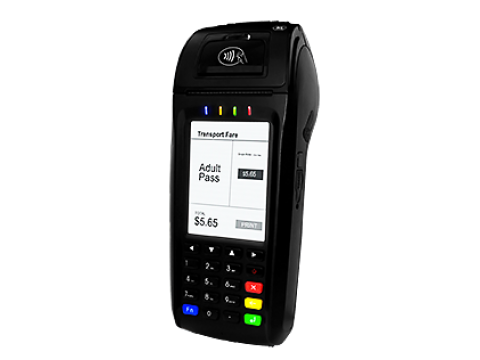

ACR890-A1

Physical Characteristics

Dimensions (mm)

208.0*85.5*53.0

Weight (g)

555.0

Processor

Processor

A8

Embedded Platform

Linux

Operation Modes

PC-Linked

-

Standalone

Yes

Power

USB Powered

Yes

Battery Powered

1* Rechargeable Li-on

External Power Adapter

Yes

Contact Smart Card Interface

ISO 7816 (Class A, B and C)

Yes

MCU Cards, T=0 and T=1

Yes

Memory Cards

-

Smart Card Read/Write Speed (kbps)

200

Card Form

Full-Sized

Card Slot

1

Contactless Smart Card Interface

ISO 14443 Type A and B

Yes

Mifare

Yes

Felica

Yes

Smart Card Read/Write Speed (kbps)

106, 212, 424, 848

Reading Distance (mm)

30

Magnetic Stripe Card

ISO 7811

Tracks 1,2,3

Bi-directional

Yes

Memory

Third-Party Application

380 MB

Data Storage

RAM

512 MB

Upgradeability

On-Board Firmware Upgradeable

Yes

Built-In Peripherals

LCD

240*320

Graphical LCD for Multiple Languages

3.5" Color LCD

Keypad

20 keys

LED

4

Buzzer

-

Built-in Speaker

Yes

Tamper Switch

-

Real Time Clock

Yes

SAM Slot

2

SIM Slot (GPRS)

1

USP Port

Micro B

Serial Port

Mini B

Wifi

Yes

WCDMA

Yes

Printer

Built-in

Certifications / Compliance

PC/SC

-

PC/SC 2.0 Part 10 - Secure PIN Entry

-

CCID

-

WHQL

-

EMV Level1 (contact)

-

CE,FCC

Yes

RoHS 2

Yes

Support OS Platforms

Windows

-

Mac OS X

-

Linux

-

Android

-
