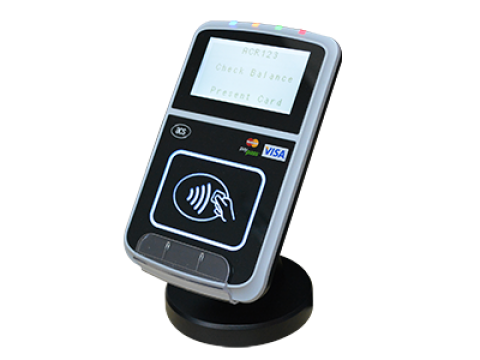

ACR123S-A1

Physical Characteristics

Dimensions (mm)

177.4*100.0*94.5

Weight (g)

506.0

Processor

Processor

32-bit

Embedded Platform

FreeRTOS

Operation Mode

PC-Linked

Yes

Standalone

-

POWER

USB Powered

Yes

Battery Powered

-

External Power Adapter

-

Host Interface

USB (Full Speed)

-

Serial (RS232)

RJ45

Contactless Smart Card Interface

ISO 14443 Type A and B

Yes

ISO/IEC 18092 (NFC)

-

MiFare

Yes

FeliCa

-

Smart Card Read/Write Speed (Kbps)

106, 212, 424, 848

Reading Distance (mm)

50

FeliCa Mobile Devices

-

Extended APDU Support

-

Secure Mifare Key Storage

Yes

NFC Reader/Writer Mode

-

NFC Peer to Peer (P2P)

-

NFC Card Emulation Mode

-

Contact smart card Interface

ISO 7816 (class A,B and C)

-

MCU cards, T=0 and T=1

-

Smart Card Read/Write Speed (kbps)

-

Memory

Third-Party Application

-

Data Storage

-

Upgradeability

USB Firmware Upgrade

Yes

Built-In Peripherals

LCD Resolution

128x64

Graphical LCD for Multiple Languages

16char x 8 Lines

Keypad

-

LED

4

Buzzer

Yes

SAM slot

3

Tamper Switch

Yes

Real Time Clock

Yes

Certifications / Compliance

PC/SC

-

CCID

-

WHQL

-

EMV Level 1 and 2 (Contactless)

Yes

NFC Forum Certification Mark

-

FIPS 201

-

Germany nPA

-

LASCOM (Japan)

-

CE, FCC

Yes

VCCI

Yes

MIC (Japan)

-

KC

Yes

RoHS 2

Yes

Support OS Platforms

Windows

Yes

Mac OS X

-

Linux

Yes

Android

-
